Original: $833.00
-65%$833.00
$291.55The Story
Purpose-built for the Yamaha AvantGrand N3 and N3X, along with select versions of the Roland V-Grand digital piano.
The Yamaha AvantGrand N3 and N3X are unlike any other digital piano on the market. With a true grand piano body, three angled legs, and a weight of 360–440 lbs, standard digital piano dollies simply won't fit. The Jansen J4002 is engineered specifically for this instrument, cradling each leg individually in a three-arm spider configuration so the piano moves safely, rolls smoothly, and stays put when it needs to.
Manufactured in the United States by Paul Jansen & Son, the J4002 is built to the same heavy-gauge steel standard as every piece of Jansen piano moving equipment — designed to last as long as the instrument it supports. Used by universities, conservatories, performance venues, and discerning home users.
Compatible Models
- Yamaha AvantGrand N3
- Yamaha AvantGrand N3X
- Roland V-Grand (select configurations — contact us to confirm)
Why Purchase the Jansen J4002 N3 Digital Grand Piano Dolly
- Purpose-built for the N3 chassis. Three precision-fitted arms mirror the N3's angled leg positions — no makeshift adapters, no universal frames that don't quite fit.
- 24½" and 32" steel sleeves. The dual-sleeve arm design spans from the center hub to each leg precisely, keeping the piano balanced and stable during movement.
- Three heavy-duty swivel casters. Ball-bearing wheels roll smoothly across hardwood, tile, and low-pile carpet without marking or gouging your floors.
- Standard L-Bend brackets at each leg. Engineered brackets cradle each leg base securely, preventing lateral shift during transport or play.
- Heavy-gauge steel with black powder coat finish. Built to support a piano exceeding 460 lbs without flex, warp, or failure over years of use.
- Permanent installation ready. Once assembled, the J4002 can remain under the piano indefinitely — ideal for homes, schools, churches, and studios that reposition the piano regularly.
- All hardware included. Every bolt, nut, and cup required for complete assembly ships in the box. No hardware store run needed.
- Made in the USA by Jansen. The same craftsmanship behind Jansen benches, dollies, and piano accessories for over 50 years.
What's in the Box

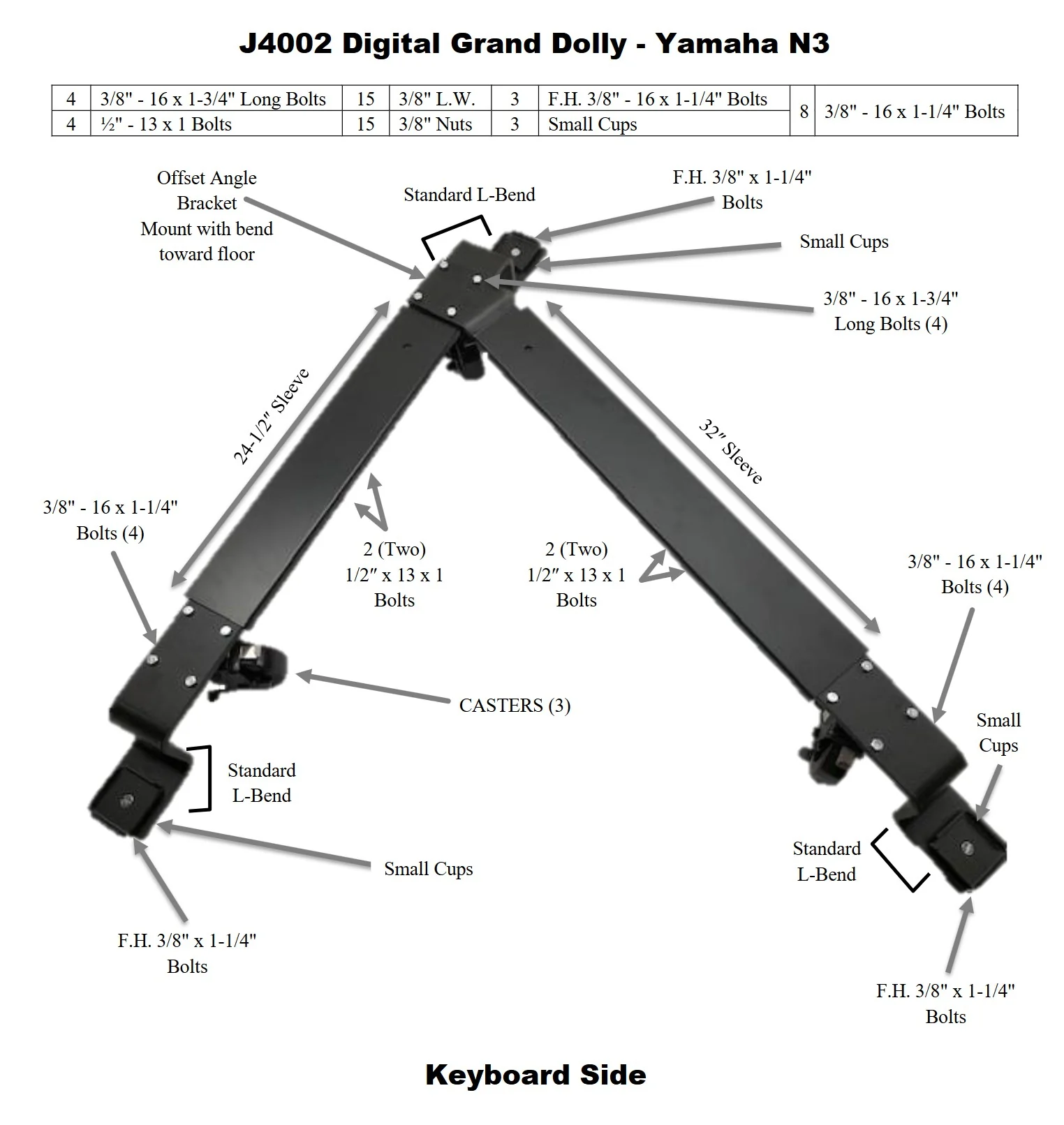

All hardware is included. The table below reflects the complete parts list per the assembly diagram.
| Qty | Part |
|---|---|
| 4 | 3/8" – 16 x 1-3/4" Long Bolts |
| 4 | 1/2" – 13 x 1 Bolts |
| 15 | 3/8" Lock Washers |
| 15 | 3/8" Nuts |
| 3 | F.H. 3/8" – 16 x 1-1/4" Bolts |
| 3 | Small Cups |
| 8 | 3/8" – 16 x 1-1/4" Bolts |
| 3 | Casters (swivel, ball-bearing) |
| 3 | Standard L-Bend Brackets |
| 1 | 24-1/2" Sleeve (left arm) |
| 1 | 32" Sleeve (right arm) |
| 1 | Offset Angle Bracket (top hub, bend toward floor) |
| 1 | Standard L-Bend (top hub) |
Shipping:
We are happy to offer free UPS shipping on all piano dollies and moving equipment to the continental United States. Alaska and Hawaii, please email for a shipping quote.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Purpose-built for the Yamaha AvantGrand N3 and N3X, along with select versions of the Roland V-Grand digital piano.
The Yamaha AvantGrand N3 and N3X are unlike any other digital piano on the market. With a true grand piano body, three angled legs, and a weight of 360–440 lbs, standard digital piano dollies simply won't fit. The Jansen J4002 is engineered specifically for this instrument, cradling each leg individually in a three-arm spider configuration so the piano moves safely, rolls smoothly, and stays put when it needs to.
Manufactured in the United States by Paul Jansen & Son, the J4002 is built to the same heavy-gauge steel standard as every piece of Jansen piano moving equipment — designed to last as long as the instrument it supports. Used by universities, conservatories, performance venues, and discerning home users.
Compatible Models
- Yamaha AvantGrand N3
- Yamaha AvantGrand N3X
- Roland V-Grand (select configurations — contact us to confirm)
Why Purchase the Jansen J4002 N3 Digital Grand Piano Dolly
- Purpose-built for the N3 chassis. Three precision-fitted arms mirror the N3's angled leg positions — no makeshift adapters, no universal frames that don't quite fit.
- 24½" and 32" steel sleeves. The dual-sleeve arm design spans from the center hub to each leg precisely, keeping the piano balanced and stable during movement.
- Three heavy-duty swivel casters. Ball-bearing wheels roll smoothly across hardwood, tile, and low-pile carpet without marking or gouging your floors.
- Standard L-Bend brackets at each leg. Engineered brackets cradle each leg base securely, preventing lateral shift during transport or play.
- Heavy-gauge steel with black powder coat finish. Built to support a piano exceeding 460 lbs without flex, warp, or failure over years of use.
- Permanent installation ready. Once assembled, the J4002 can remain under the piano indefinitely — ideal for homes, schools, churches, and studios that reposition the piano regularly.
- All hardware included. Every bolt, nut, and cup required for complete assembly ships in the box. No hardware store run needed.
- Made in the USA by Jansen. The same craftsmanship behind Jansen benches, dollies, and piano accessories for over 50 years.
What's in the Box
All hardware is included. The table below reflects the complete parts list per the assembly diagram.
| Qty | Part |
|---|---|
| 4 | 3/8" – 16 x 1-3/4" Long Bolts |
| 4 | 1/2" – 13 x 1 Bolts |
| 15 | 3/8" Lock Washers |
| 15 | 3/8" Nuts |
| 3 | F.H. 3/8" – 16 x 1-1/4" Bolts |
| 3 | Small Cups |
| 8 | 3/8" – 16 x 1-1/4" Bolts |
| 3 | Casters (swivel, ball-bearing) |
| 3 | Standard L-Bend Brackets |
| 1 | 24-1/2" Sleeve (left arm) |
| 1 | 32" Sleeve (right arm) |
| 1 | Offset Angle Bracket (top hub, bend toward floor) |
| 1 | Standard L-Bend (top hub) |
Shipping:
We are happy to offer free UPS shipping on all piano dollies and moving equipment to the continental United States. Alaska and Hawaii, please email for a shipping quote.
